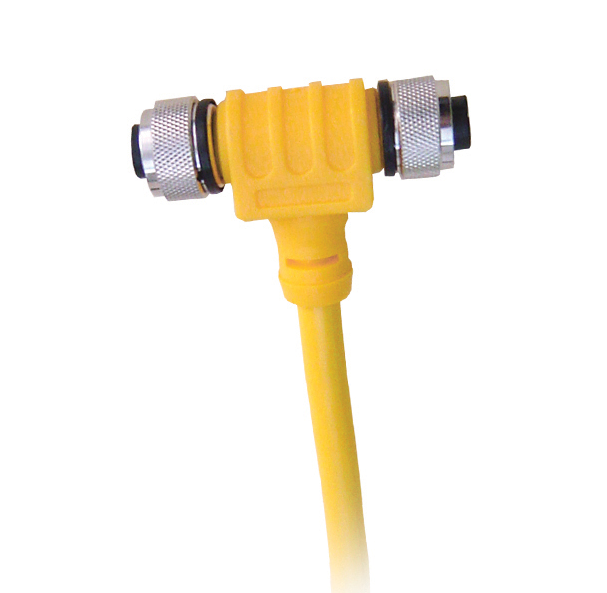

Power Tap Tee
A Powertap Tee is connected to a network backbone just like any Tee but rather than connecting a device their purpose is to provide power. Maretron Powertap Tee uniquely provides two power inputs permitting doubled power provision for devices.
Mechanical
Molded Body Mat/Color: Thermoplastic PUR/Yellow
Contact Carrier Mat/Color: Thermoplastic PUR/Black
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Cable Jacket Mat/Color: PVC/ Yellow
Conductor Insulation Mat: PVC
Number of Conductors: 5x18 (1.02mm) AWG
Electrical
Voltage Rating: 250 V Max
Amperage: 4.0 Amps
Environmental
Protection Class: IEC IP67, NEMA 1,3,4,6P
Operating Temperature: -40°C to 105°C (-40°F to 221°F)
Approvals
NMEA: NMEA 2000
Approved IEC: IEC 61162-3
