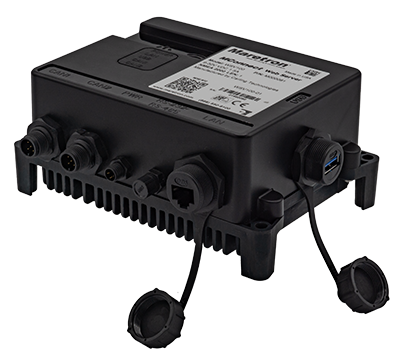

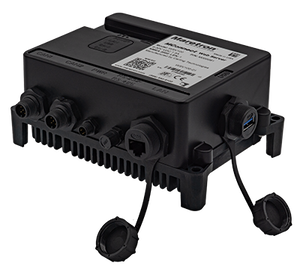

WSV100 - MConnect
MConnect sets a new standard in vessel monitoring with its client-server architecture that runs on the WSV100 hardware.
It provides real-time data display on multiple devices, including phones, tablets, and personal computers. The built-in software features an intuitive graphics editor, enabling users to create customized interfaces to display data on marine Multifunction Displays (MFDs). MConnect is compatible with leading marine systems, including Garmin OneHelm, Raymarine LH 4, Furuno NavNet, and more.
Advanced Customization
The built-in MConnect Editor provides an unparalleled level of customization, allowing users to design screen layouts from scratch or choose from 87 pre-built options. OEMs can tailor the interface to match their brand identity, creating a cohesive branded user experience. This flexibility enables a truly personalized user interface, catering to both novice and expert users.
Dual NMEA 2000® Bus Connectivity
MConnect can independently connect to and receive data from two optically isolated NMEA 2000® networks, offering enhanced reliability and redundancy that ensures continuous system monitoring.
Full Integration with Digital Switching Systems
MConnect uses standard NMEA 2000® switching PGNs, allowing seamless integration with third-party systems as well as our own Octoplex® and MPower® systems. This consolidation of control and monitoring simplifies complex integrations into one platform.
Web-Based Accessibility
Unlike traditional systems, MConnect’s web server allows remote access from any device with a browser, and uses VPN support for enhanced data security. This ensures both versatility and security for onboard and offboard management.
- Engaging HTML5 user interface experience
- Design your own look with custom graphics
- Can support simultaneous access by up to four users
- Dual Can Bus for dual or redundant NMEA 2000 Connections
- 9-32 Volt Power Input (with reverse polarity protection)
- Only 5-Watt power usage
- RJ45 Ethernet Port
- USB 3.0 Port
- WIFI
