TM275LHW

TM275LHW

Regular price $0.00 $0.00

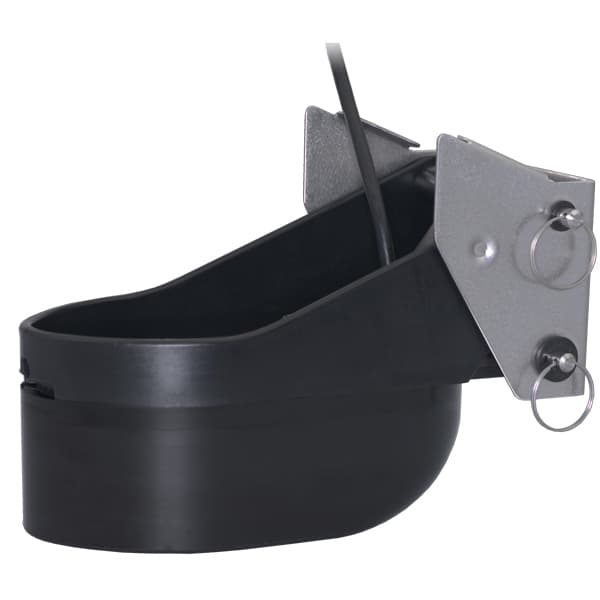

Wide-Beam Chirp-Ready Transom Mount Transducer

Find A Dealer

The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies.

The low frequency band and 1 kW of power also provides great deeper water performance.

Features:

  • Depth and fast-response water-temperature sensor
  • 1 kW for great deep water performance from the low frequency
  • Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')
    • 25° to 16° beamwidth
  • High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
    • 25° constant beamwidth
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • High frequency provides superior shallow water performance, bottom detail and fish target separation
  • High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
  • Transom-mount transducer with stainless steel mounting bracket
  • Recommended boat size: up to 10 m (32')
  • Hull Type: Fiberglass, wood, aluminium or steel
  • Also available in thru-hull (B275LHW) and pocket/keel mount (PM275LHW) models
  • Exclusive Xducer ID technology
  • Weight: 4 kg (8.9 lb)
  • Transom Angles: 3° to 21°
  • Acoustic Window: Urethane
  • Urethane transducer housing with stainless steel bracket
  • Eight internal broadband ceramic assemblies

Data Sheet
