TM265LH

TM265LH

Regular price $0.00 $0.00

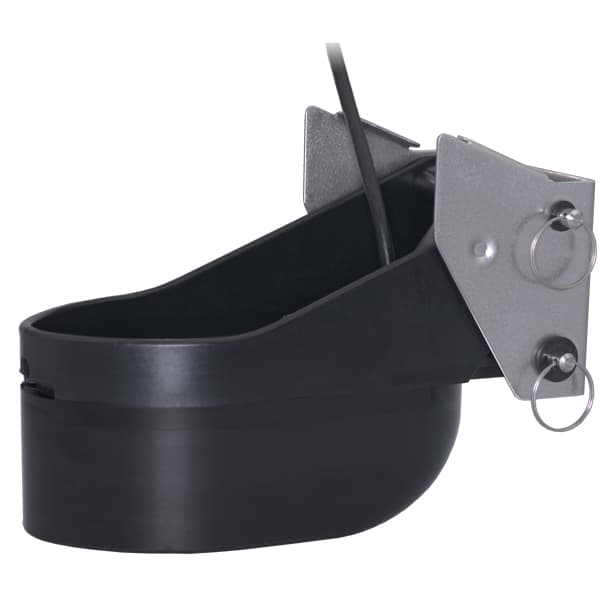

TM265LH Chirp-Ready Transom Mount Transducer

Find A Dealer

This powerhouse transducer delivers excellent resolution, bottom discrimination and bait and game fish separation at all depths. The TM265LH is packed with a seven-element, low-frequency array that operates between 42 kHz and 65 kHz for excellent deep water performance.

The high-frequency ceramic operates between 130 kHz and 210 kHz with a narrow (10° to 6°), perfect for pick apart structure and pinpointing tight holding fish in structure.

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW of power for great deep water performance
  • Low Frequency: 42 kHz to 65 kHz
    • 25° to 16° port-starboard beamwidth with a maximum depth of 914 m (3000')
  • High Frequency: 130 kHz to 210 kHz
    • 10° to 6° beamwidth with a maximum depth of 304 m (1000')
  • 103 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Urethane transom transducer with a stainless steel bracket for installation on boats of all propulsion types
  • Recommended boat size: Up to 10 m (32')
  • Hull Type: Fiberglass, wood, steel, or aluminum
  • Also available in cavity mount (CM265LH), thru-hull (B265LH), in-hull (M265LH), and pocket/keel mount (PM265LH) models
  • Exclusive Xducer ID technology
  • Weight: 4 kg (8.9 lb)
  • Acoustic Window: Urethane Bracket: Adjustable stainless steel
  • For transom angles 3° to 21°
  • Eight internal broadband ceramic assemblies
