FA-70

FA-70

Regular price $1,391.00 $0.00

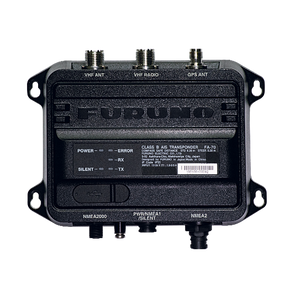

Furuno Class B - AIS Transponder c/w GPAC01 Antenna & 10m Cable

Shipping calculated at checkout.

Accurate information exchange that can be utilised for collision avoidance.

FA-70 Class-B AIS transponder receives navigation data from AIS-equipped vessels nearby that can be utilised to aid in safe navigation. The FA-70 also transmits own ship's information to the vessels around, which aids in collision avoidance.

 Features:

  • Compact & Light Housing which saves space inside the console
  • NMEA2000 and NMEA0183 Interface
  • Faster transmission with Higher Power thanks to SOTDMA technology
  • Internal VHF Splitter - for use as a VHF radio telephone as well as an AIS transmitter
  • Receives both Class-A and Class-B AIS information
  • Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby
  • Greatly improves the level of the situational awareness even in fog, darkness or congested waterways


Output Power 5W or 1W (SO-TDMA), 2W (CS-TDMA)


Channel Spacing: 25 kHz


GPS Receiving Channels: 12 channels parallel, SBAS 2 channels,14 satellites tracking


GPS RX Frequency: 1575.42 MHz


GPS RX Code: C/A code


Position Accurac
y: 13m (2 drms, HDOP less than or equal to 4)


Power Supply: 12-24 VDC, 1.8 – 0.9 A


Weight: 0.52 kg


Dimensions: 190 (H) x 131 (W) x 55 (D)









Brochure

FA-70
