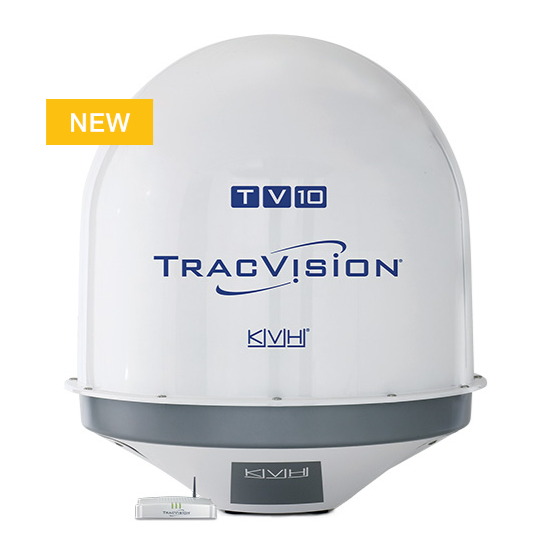

TV10

The premier, lightest 1 metre marine satellite TV system with expanded global Ku-band HD coverage

KVH’s powerful high-gain TracVision TV10 provides a crystal clear viewing experience with high-definition support for regional satellite TV services throughout the world. Enjoy premium and uninterrupted entertainment with reliable coverage offshore and in the most remote locations.

Highlights:

• Supports DIRECTV U.S. & Latin America, DISH Network U.S. & Mexico, Bell TV, SKY Mexico, and circular and linear Ku-band services worldwide
• HDTV-compatible (Ku-band only)
• The most advanced stabilized tracking for fast satellite acquisition
• High-performance tracking with advance algorithms for crystal-clear television picture in heavy seas
• Some installation require only a single coaxial cable, plus mounting pattern matches competitive system models for easy upgrades and retrofits
• System configurations support multiple receivers with simple onboard integration
• Preprogrammed worldwide satellite library
• All system configurations offer built-in GPS; system comes with Linear Universal LNB with autoskew and Stacked U.S. Circular LNB (for DIRECTV SD and DISH) as standard equipment
• IP AutoSwitch option for multi-receiver installations delivers simple auto-switching on DiSEqC-compatible services
• DVB-S2 compatible
• Global support from KVH’s Certified Support Network (CSN)
• World-class warranty coverage and support


• Satellite Coverage Regions:  - Refer to Link on our Documents Page
• Antenna Dish Diameter: 1 metre (41.5")
• Antenna Unit Diameter x Height x Antenna Unit Weight 1.2 m x 1.4 m (48.8" x 57.3") 90 kg (198 lbs)
• Minimum EIRP (Ku-band):  41.5 dBW
• LNB Types Available (polarization/output):  Linear Universal Quad DIRECTTV L.A. Circular CircularTri-Americas Circular SKY Mexico Stacked
• Tracking Technology: High Performance
• User Interface: TV-Hub web interface
• System Power: 20-30 VDC 75 watts nominal
