Sanshin HR1012UB

Sanshin HR1012UB

Regular price $1,734.78 $1,734.78

Remote Controlled Halogen Searchlight 24vdc

Shipping calculated at checkout.

SANSHIN Searchlight HR-1012UB

Designed to blend in with the modern design of today's powerboats and commercial vessels, this twin beam spotlight sets the standards in design and quality.

This searchlight combines dual 55W halogen lamps and parabolic reflectors. The reflectors are optically perfect mirrors, which projects two hundred thousand candlepower for up to 500 meters.

The remote-control panel has an on - off switch and touch buttons for rotation and elevation. Standard with main control panel.

Elevating and turning operations can be remote controlled by motor.


Dimensions: 232 (W) x 199 (H) x 206 (D) mm
Power Supply:  24 VDC (5A)

Sanshin Remote Searchlight 2 x 55w 24VDC - Bottom-Entry Cable Version

  • Lamps: 2 x 55W Halogen lamp

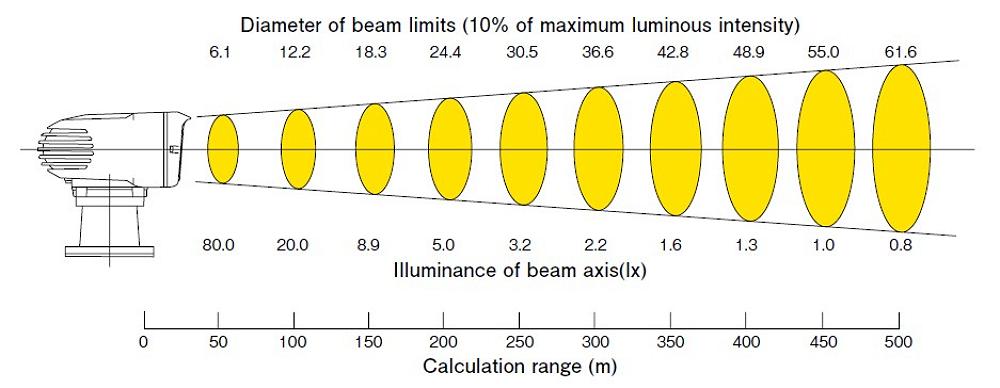

  • Max Luminous Intensity: 200,000 cd (12V) / 160,000 cd (24V)
  • Beam Spread: 5° (Vertical) x 7° (Horizontal)
  • Range: 440m (12V) / 400m (24V)
  • Elevation Angle: Up 9° / Down 17°
  • Turning Angle: 360° (Endless)
  • Elevation Speed: 2.8°/sec
  • Turning Speed: 31°/sec (High) / 20°/sec (Low)
  • Material: Aluminium alloy die casting
  • Waterproofing: IP56
  • Weight: 3.25 kg
  • Dimensions: 232 (W) x 199 (H) x 206 (D) mm
  • Power Supply: 12 VDC (10A) / 24 VDC (5A)

Data Sheet

HR1012
Lamp List
