G2183

G2183

Regular price $691.30 $0.00

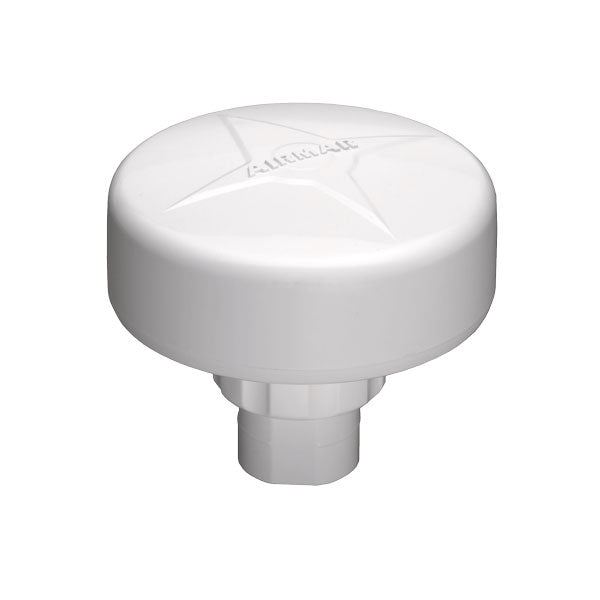

External GPS antenna

Shipping calculated at checkout.

The G2183 can connect to both NMEA 0183 or 2000® networks, as the unit outputs both protocols simultaneously. And its compact size makes it easy to flush mount, pole mount, or rail mount.

Features

  • WAAS/EGNOS GPS with 3 m (10') accuracy
  • Up to 10 Hz rapid position update rate —User selectable from 1 Hz to 10 Hz
  • Provides: —Latitude and Longitude —Course Over Ground (COG) —Speed Over Ground (SOG) —Time and Date —Magnetic Variation
  • Outputs NMEA 0183 and NMEA2000® data simultaneously
  • IPX6 waterproof enclosure
  • Available as a combination GPS/Heading Sensor (GH2183)
  • Supply Voltage: 9 VDC to 40 VDC
  • Supply Current: <90 mA at 12 VDC
  • Power 800 mW
  • Operating Temperature Range: -30°C to 55°C (-22°F to 131°F)
  • Storage Temperature Range: -30°C to 70°C (-22°F to 158°F)
  • GPS Satellite Tracked: 14-channel (maximum)
  • GPS Satellites Acquired: 51-channel (maximum)
  • WAAS/EGNOS Satellites Tracked: any channel available
  • GPS Position Accuracy: 3 m (10’) with WAAS (95% of the time, SA off)
  • GPS-Fix Update Rate: Up to 10 times per second (user selectable)
  • Cold Start Acquisition: 60 seconds
  • NMEA2000® Load Equivalency Number (LEN): 2
  • Comes with 6 m drop cable
  • Certifications and Standards: CE, IPX6, RoHS, IEC60945 (Pending)

Data Sheet

G2183
